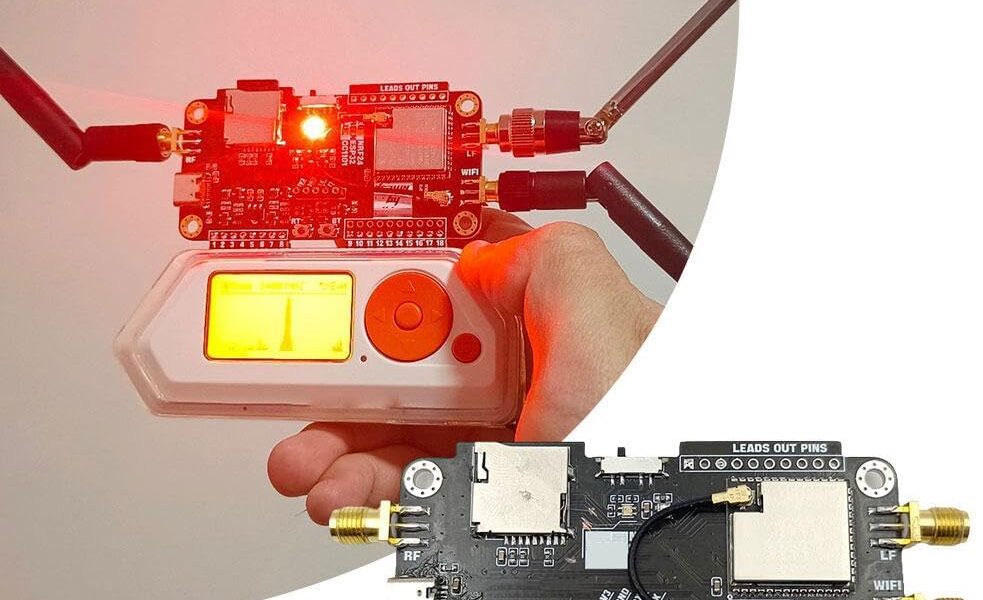

All-in-one Expansion Board for Flipper Zero

Spread the love
flipper wifi

What Is This Device?

The All-in-one Expansion Board for Flipper Zero is basically a super-powered add-on that gives your Flipper Zero new abilities to communicate with different wireless devices. It combines two important wireless modules (CC1101 and 2.4G) into one convenient board that attaches to your Flipper Zero.

What’s In The Box?

When I received my All-in-one Expansion Board, the package included:

  • The main expansion board
  • Built-in CC1101 module (for sub-1GHz communications)
  • Built-in 2.4G module (for 2.4GHz communications)
  • Small antenna for the CC1101 module
  • Small antenna for the 2.4G module
  • Basic instruction card

Getting It Connected

Setting up the All-in-one Expansion Board was pretty straightforward:

  1. I connected the board to the GPIO pins on top of my Flipper Zero
  2. Attached both antennas to their correct spots on the board
  3. Installed the necessary apps from the Flipper Zero App Catalog
  4. That’s it – no soldering or complex wiring needed!

The whole setup took about 5 minutes, making it a “plug and play” experience.

What Can It Actually Do?

This expansion board dramatically increases what your Flipper Zero can do:

The CC1101 Module:

This part of the board lets your Flipper communicate with devices that use frequencies below 1GHz (sub-1GHz), including:

  • Car key fobs
  • Garage door openers
  • Wireless doorbells
  • Weather stations
  • Older wireless sensors
  • Many remote controls

The CC1101 extends the frequency range your Flipper can work with, letting you capture and analyze signals from many more devices than the standard Flipper alone.

The 2.4G Module:

This module handles devices that communicate on the 2.4GHz frequency band, including:

  • Wireless keyboards and mice
  • Some remote-controlled toys
  • Certain security devices
  • Smart home sensors
  • Wireless game controllers

With this module, your Flipper can detect, analyze, and in some cases interact with these common wireless devices.

The Good Points

  • All-in-one solution: No need to buy and swap different modules
  • Saves money: Cheaper than buying the modules separately
  • Saves space: Both modules on one compact board
  • Extends range: The included antennas improve reception
  • Simple setup: Just plug it in and you’re ready to go
  • Great for learning: Perfect for understanding different wireless protocols
  • Doesn’t block buttons: Well-designed so it doesn’t interfere with Flipper controls

The Less Good Points

  • Battery drain: Using wireless features uses more of your Flipper’s battery
  • Learning curve: Takes time to understand all the different wireless protocols
  • Size: Makes your Flipper less pocket-friendly
  • Responsibility required: Should only be used for education and on your own devices
  • Not universal: Still won’t work with Bluetooth or WiFi (you need different modules for those)

Cool Things I’ve Done With It

Here are some interesting projects I’ve tried with my All-in-one Expansion Board:

  1. Signal Analysis: Captured and analyzed signals from my garage door opener to understand how it works
  2. Range Testing: Compared the signal range with and without the expansion board
  3. Protocol Learning: Identified different types of wireless communication used by devices around my house
  4. Remote Finding: Used it to locate a lost TV remote by detecting its signal
  5. Custom Controls: Created a custom controller for some wireless LED lights

Is It Worth Getting?

The All-in-one Expansion Board is worth considering if:

  • You’re interested in wireless communication protocols
  • You want to analyze signals from various devices around your home
  • You’re studying electronics, computing, or cybersecurity
  • You want to extend what your Flipper Zero can do
  • You’re looking to save money compared to buying individual modules

it’s more affordable than buying the CC1101 and 2.4G modules separately.

For Different Types of Users

For Beginners:

If you’re new to Flipper Zero, this board offers a convenient way to explore wireless communications without needing to understand which specific module you need for different tasks.

For Students:

This board is excellent for learning about wireless protocols, signal analysis, and how everyday devices communicate wirelessly.

For Tech Enthusiasts:

Having both modules always available means you can quickly analyze almost any consumer wireless device you encounter without swapping hardware.

Final Thoughts

The All-in-one Expansion Board has transformed my Flipper Zero from a interesting gadget into a comprehensive wireless learning platform. While the standard Flipper can already do quite a bit, this expansion board removes many of the limitations by significantly extending its frequency range and capabilities.

What I appreciate most is the convenience of having both modules always available without needing to swap between different add-ons. The design is well thought out, allowing easy access to all Flipper controls while still providing robust new capabilities.

Remember that with great power comes great responsibility – this device should be used for educational purposes and only on devices you own or have permission to analyze. The real value is in learning how different wireless technologies work and understanding the principles behind them.

Whether you’re a student, hobbyist, or professional, this expansion board offers excellent value and opens up a world of wireless exploration with your Flipper Zero.

Have you used expansion modules with your Flipper Zero? What wireless devices have you learned about with them?
